Flutter之Align


1、Align介紹

Align的作為一個參數(shù)，設置子child的對齊方式，比如居中，左上，右下等多個對齊方向




2、部分源碼和功能

      const Align({
        Key key,
        this.alignment = Alignment.center,
        this.widthFactor,
        this.heightFactor,
        Widget child,
      }) : assert(alignment != null),
           assert(widthFactor == null || widthFactor >= 0.0),
           assert(heightFactor == null || heightFactor >= 0.0),
           super(key: key, child: child);

      /// The top left corner.
      static const Alignment topLeft = Alignment(-1.0, -1.0);

      /// The center point along the top edge.
      static const Alignment topCenter = Alignment(0.0, -1.0);

      /// The top right corner.
      static const Alignment topRight = Alignment(1.0, -1.0);

      /// The center point along the left edge.
      static const Alignment centerLeft = Alignment(-1.0, 0.0);

      /// The center point, both horizontally and vertically.
      static const Alignment center = Alignment(0.0, 0.0);

      /// The center point along the right edge.
      static const Alignment centerRight = Alignment(1.0, 0.0);

      /// The bottom left corner.
      static const Alignment bottomLeft = Alignment(-1.0, 1.0);

      /// The center point along the bottom edge.
      static const Alignment bottomCenter = Alignment(0.0, 1.0);

      /// The bottom right corner.
      static const Alignment bottomRight = Alignment(1.0, 1.0);

 我們知道最左上角的坐標是Alignment(-1.0, -1.0),中心坐標是Alignment(0.0, 0.0);然后最右下角坐標是Alignment(1.0, 1.0);

FractionalOffset對其封裝了大小范圍是(0~1),FractionalOffset(0, 0)對于左上角，F(xiàn)ractionalOffset(1, 1)對于右下角，F(xiàn)ractionalOffset(0.5, 0.5)對于中間坐標

FractionalOffset(0.5, 0.5) == Alignment(0.0,0.0) == Alignment.center



3、測試代碼

測試1

      @override
      Widget build(BuildContext context) {
          return MaterialApp(
              title: 'open url',
              home: Scaffold(
                appBar: AppBar(
                  // Here we take the value from the MyHomePage object that was created by
                  // the App.build method, and use it to set our appbar title.
                  title: Text('hello flutter'),
                ),
                body: Align(
                  alignment: FractionalOffset(1, 0),
                  child: Container(
                      color: Colors.red,
                      width: 100,
                      height: 100,
                  ),
                ),
              ),
          );
      }

測試2

      @override
      Widget build(BuildContext context) {
          return MaterialApp(
              title: 'open url',
              home: Scaffold(
                appBar: AppBar(
                  // Here we take the value from the MyHomePage object that was created by
                  // the App.build method, and use it to set our appbar title.
                  title: Text('hello flutter'),
                ),
                body: Align(
                  alignment: FractionalOffset(0.5, 0),
                  child: Text("chenyu"),
                ),
              ),
          );
      }
    }



4、運行效果

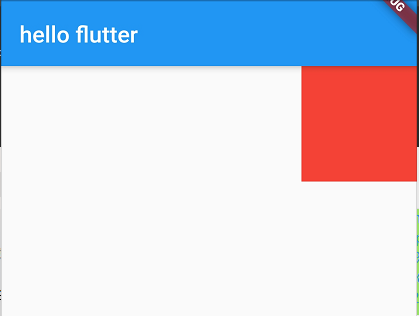

測試1結果

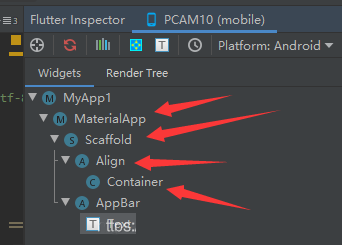

項目結構如下



















測試2結果
