關于Kubernetes集群中常見問題的排查方法的一些筆記
寫在前面
學習K8s，所以整理記憶
文章由《Kubernetes權威指南:從Docker到Kubernetes實踐全接觸》讀書學習整理而來
「 一切時代的藝術都在努力為我們內心那神圣的無聲的欲望提供語言。 ——赫爾曼·黑塞《彼得·卡門青》」
?
「因為沒有具體的Demo，所以文章有些空，類似于一些指導思想，讀著乏味，這里先列出干貨：一些查問題的網站，關于內容之后有機會在補充相關的案例，如果解決問題，時間緊張的小伙伴還是針對問題描述下面的平臺里找找」
?
查問題的網站
Kubernetes官網中監控、記錄和調試相關問題: https://kubernetes.io/docs/tasks/debug-application-cluster/

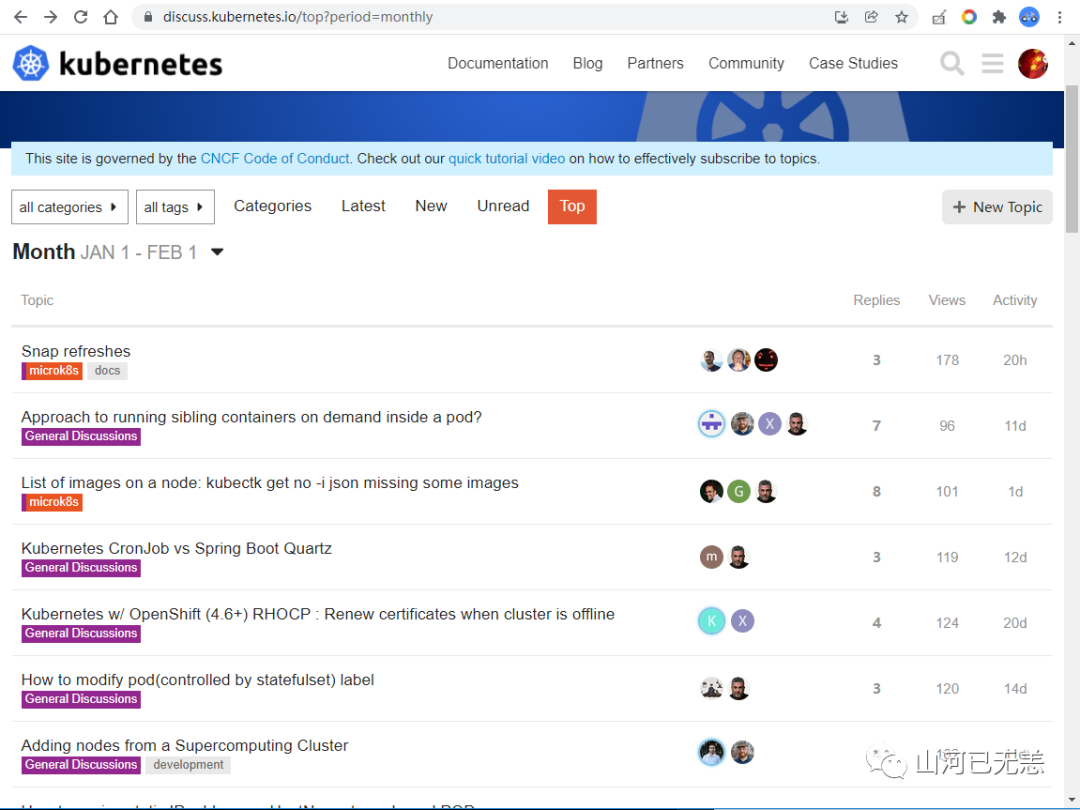

Kubernetes官方論壇: https://discuss.kubernetes.io/(這個需要科學上網)

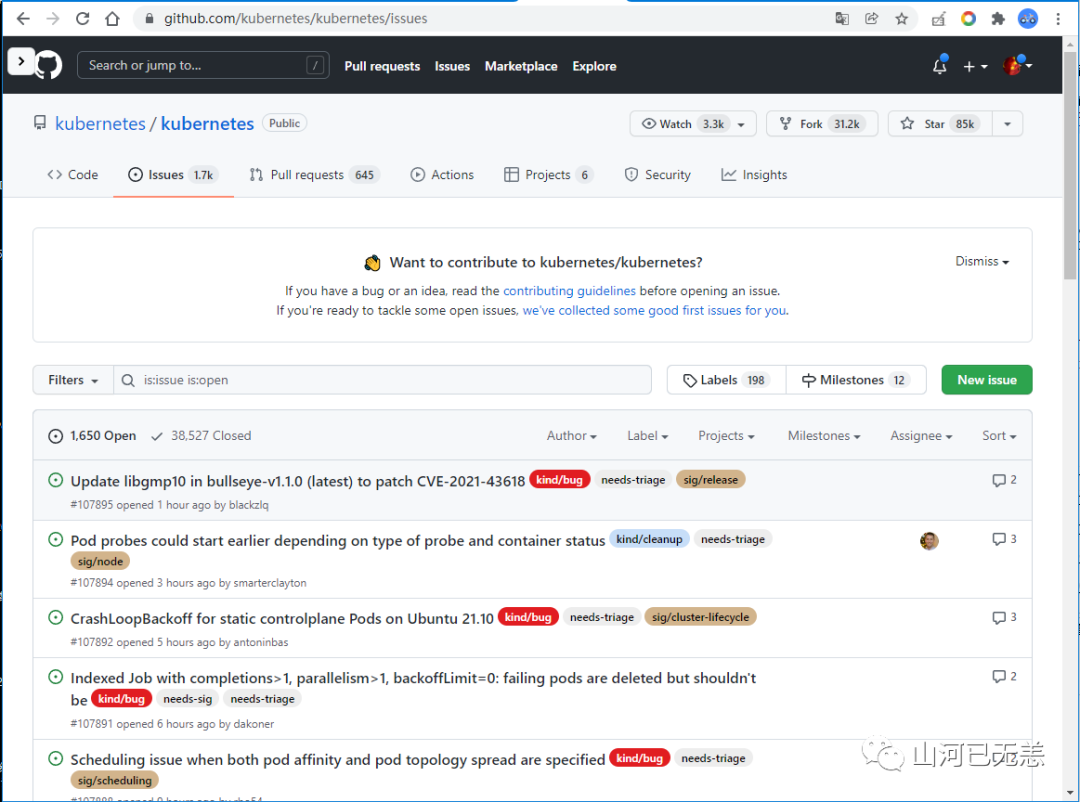

GitHub庫關于Kubernetes問題列表:https://github.com/kubernetes/kubernetes/issues

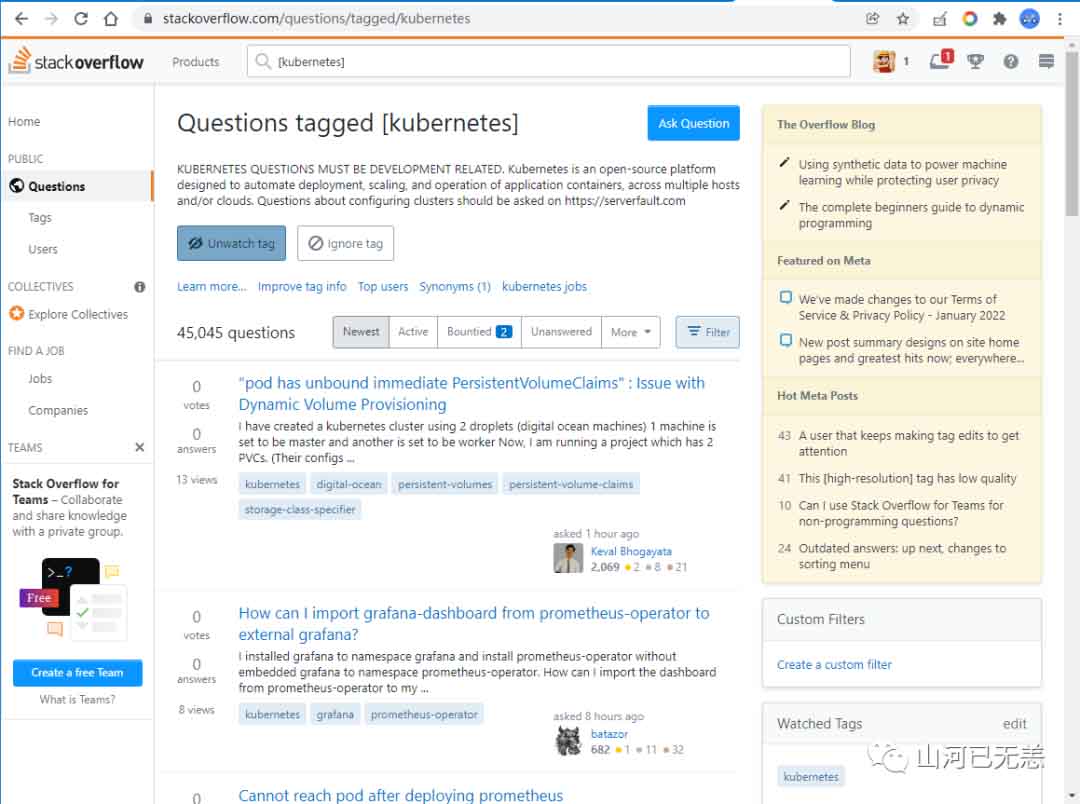

StackOverflow網站上關于Kubernetes的問題討論：https://stackoverflow.com/questions/tagged/kubernetes
Kubernetes Slack聊天群組: https://kubernetes.slack.com/(需要谷歌賬號)
Kubernetes集群中常見問題的排查方法
為了跟蹤和發現在Kubernetes集群中運行的容器應用出現的問題,我們常用如下查錯方法。
查看Kubernetes對象的當前運行時信息,特別是與對象關聯的Event事件。這些事件記錄了相關主題、發生時間、最近發生時間、發生次數及事件原因等,對排查故障非常有價值。通過查看對象的運行時數據,我們還可以發現參數錯誤、關聯錯誤、狀態異常等明顯問題。由于在Kubernetes中多種對象相互關聯,因此這一步可能會涉及多·個相關對象的排查問題。
對于服務、容器方面的問題,可能需要深入容器內部進行故障診斷,此時可以通過查看容器的運行日志來定位具體問題。
對于某些復雜問題,例如Pod調度這種全局性的問題,可能需要結合集群中每個節點上的Kubernetes服務日志來排查。比如搜集Master上的kube-apiserver, kube-schedule, kube-controler-manager服務日志,以及各個Node上的kubelet, kube-proxy服務日志.
「查看系統Event」
在Kubernetes集群中創建Pod后,我們可以通過kubectl get pods命令查看Pod列表,但通過該命令顯示的信息有限。Kubernetes提供了kubectl describe pod命令來查看一個Pod的詳細信息,例如:
通過kubectl describe pod命令,可以顯示Pod創建時的配置定義、狀態等信息,還可以顯示與該Pod相關的最近的Event事件,事件信息對于查錯非常有用。
「如果某個Pod一直處于Pending狀態,我們就可以通過kubectl describe了解具體的原因：」
沒有可用的Node以供調度，可能原因為pod端口沖突，或者受Taints影響，。
開啟了資源配額管理，但在當前調度的目標節點上資源不足。
鏡像下載失敗等。
「查看pod詳細信息」
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl describe pods etcd-vms81.liruilongs.github.io -n kube-system
# pod創建的基本信息
Name: etcd-vms81.liruilongs.github.io
Namespace: kube-system
Priority: 2000001000
Priority Class Name: system-node-critical
Node: vms81.liruilongs.github.io/192.168.26.81
Start Time: Tue, 25 Jan 2022 21:54:20 +0800
Labels: component=etcd
tier=control-plane
Annotations: kubeadm.kubernetes.io/etcd.advertise-client-urls: https://192.168.26.81:2379
kubernetes.io/config.hash: 1502584f9ab841720212d4341d723ba2
kubernetes.io/config.mirror: 1502584f9ab841720212d4341d723ba2
kubernetes.io/config.seen: 2021-12-13T00:01:04.834825537+08:00
kubernetes.io/config.source: file
seccomp.security.alpha.kubernetes.io/pod: runtime/default
Status: Running # Node當前的運行狀態,
IP: 192.168.26.81
IPs:
IP: 192.168.26.81
Controlled By: Node/vms81.liruilongs.github.io
Containers:
etcd: # pod的一些基礎信息
Container ID: docker://20d99a98a4c2590e8726916932790200ba1cf93c48f3c84ca1298ffdcaa4f28a
Image: registry.aliyuncs.com/google_containers/etcd:3.5.0-0
Image ID: docker-pullable://registry.aliyuncs.com/google_containers/etcd@sha256:9ce33ba33d8e738a5b85ed50b5080ac746deceed4a7496c550927a7a19ca3b6d
Port: <none>
Host Port: <none>
Command: # 容器運行的一些啟動參數
etcd
--advertise-client-urls=https://192.168.26.81:2379
--cert-file=/etc/kubernetes/pki/etcd/server.crt
--client-cert-auth=true
--data-dir=/var/lib/etcd
--initial-advertise-peer-urls=https://192.168.26.81:2380
--initial-cluster=vms81.liruilongs.github.io=https://192.168.26.81:2380
--key-file=/etc/kubernetes/pki/etcd/server.key
--listen-client-urls=https://127.0.0.1:2379,https://192.168.26.81:2379
--listen-metrics-urls=http://127.0.0.1:2381
--listen-peer-urls=https://192.168.26.81:2380
--name=vms81.liruilongs.github.io
--peer-cert-file=/etc/kubernetes/pki/etcd/peer.crt
--peer-client-cert-auth=true
--peer-key-file=/etc/kubernetes/pki/etcd/peer.key
--peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt
--snapshot-count=10000
--trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt
State: Running
Started: Tue, 25 Jan 2022 21:54:20 +0800
Last State: Terminated
Reason: Error
Exit Code: 255
Started: Mon, 24 Jan 2022 08:35:16 +0800
Finished: Tue, 25 Jan 2022 21:53:56 +0800
Ready: True
Restart Count: 128
Requests: # 涉及到的一些資源信息
cpu: 100m
memory: 100Mi
Liveness: http-get http://127.0.0.1:2381/health delay=10s timeout=15s period=10s #success=1 #failure=8
Startup: http-get http://127.0.0.1:2381/health delay=10s timeout=15s period=10s #success=1 #failure=24
Environment: <none>
Mounts:
/etc/kubernetes/pki/etcd from etcd-certs (rw)
/var/lib/etcd from etcd-data (rw)
Conditions: #pod啟動以后會做一系列的自檢工作:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes: # 映射的宿主機的數據卷信息，這里的定義為宿主機共享
etcd-certs:
Type: HostPath (bare host directory volume)
Path: /etc/kubernetes/pki/etcd
HostPathType: DirectoryOrCreate
etcd-data:
Type: HostPath (bare host directory volume)
Path: /var/lib/etcd
HostPathType: DirectoryOrCreate
QoS Class: Burstable
Node-Selectors: <none>
Tolerations: :NoExecute op=Exists
Events: <none>
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
「查看集群中的Node節點和節點的詳細信息」
[root@liruilong k8s]# kubectl get nodes
NAME STATUS AGE
127.0.0.1 Ready 2d
[root@liruilong k8s]# kubectl describe node 127.0.0.1
# Node基本信息:名稱、標簽、創建時間等。
Name: 127.0.0.1
Role:
Labels: beta.kubernetes.io/arch=amd64
beta.kubernetes.io/os=linux
kubernetes.io/hostname=127.0.0.1
Taints: <none>
CreationTimestamp: Fri, 27 Aug 2021 00:07:09 +0800
Phase:
# Node當前的運行狀態, Node啟動以后會做一系列的自檢工作:
# 比如磁盤是否滿了,如果滿了就標注OutODisk=True
# 否則繼續檢查內存是否不足(如果內存不足,就標注MemoryPressure=True)
# 最后一切正常,就設置為Ready狀態(Ready=True)
# 該狀態表示Node處于健康狀態, Master將可以在其上調度新的任務了(如啟動Pod)
Conditions:
Type Status LastHeartbeatTime LastTransitionTime Reason Message
---- ------ ----------------- ------------------ ------ -------
OutOfDisk False Sun, 29 Aug 2021 23:05:53 +0800 Sat, 28 Aug 2021 00:30:35 +0800 KubeletHasSufficientDisk kubelet has sufficient disk space available
MemoryPressure False Sun, 29 Aug 2021 23:05:53 +0800 Fri, 27 Aug 2021 00:07:09 +0800 KubeletHasSufficientMemory kubelet has sufficient memory available
DiskPressure False Sun, 29 Aug 2021 23:05:53 +0800 Fri, 27 Aug 2021 00:07:09 +0800 KubeletHasNoDiskPressure kubelet has no disk pressure
Ready True Sun, 29 Aug 2021 23:05:53 +0800 Sat, 28 Aug 2021 00:30:35 +0800 KubeletReady kubelet is posting ready status
# Node的主機地址與主機名。
Addresses: 127.0.0.1,127.0.0.1,127.0.0.1
# Node上的資源總量:描述Node可用的系統資源,包括CPU、內存數量、最大可調度Pod數量等,注意到目前Kubernetes已經實驗性地支持GPU資源分配了(alpha.kubernetes.io/nvidia-gpu=0)
Capacity:
alpha.kubernetes.io/nvidia-gpu: 0
cpu: 1
memory: 1882012Ki
pods: 110
# Node可分配資源量:描述Node當前可用于分配的資源量。
Allocatable:
alpha.kubernetes.io/nvidia-gpu: 0
cpu: 1
memory: 1882012Ki
pods: 110
# 主機系統信息:包括主機的唯一標識UUID, Linux kernel版本號、操作系統類型與版本、Kubernetes版本號、kubelet與kube-proxy的版本號等。
System Info:
Machine ID: 963c2c41b08343f7b063dddac6b2e486
System UUID: EB90EDC4-404C-410B-800F-3C65816C0E2D
Boot ID: 4a9349b0-ce4b-4b4a-8766-c5c4256bb80b
Kernel Version: 3.10.0-1160.15.2.el7.x86_64
OS Image: CentOS Linux 7 (Core)
Operating System: linux
Architecture: amd64
Container Runtime Version: docker://1.13.1
Kubelet Version: v1.5.2
Kube-Proxy Version: v1.5.2
ExternalID: 127.0.0.1
# 當前正在運行的Pod列表概要信息
Non-terminated Pods: (3 in total)
Namespace Name CPU Requests CPU Limits Memory Requests Memory Limits
--------- ---- ------------ ---------- --------------- -------------
default mysql-2cpt9 0 (0%) 0 (0%) 0 (0%) 0 (0%)
default myweb-53r32 0 (0%) 0 (0%) 0 (0%) 0 (0%)
default myweb-609w4 0 (0%) 0 (0%) 0 (0%) 0 (0%)
# 已分配的資源使用概要信息,例如資源申請的最低、最大允許使用量占系統總量的百分比。
Allocated resources:
(Total limits may be over 100 percent, i.e., overcommitted.
CPU Requests CPU Limits Memory Requests Memory Limits
------------ ---------- --------------- -------------
0 (0%) 0 (0%) 0 (0%) 0 (0%)
# Node相關的Event信息。
Events:
FirstSeen LastSeen Count From SubObjectPath Type Reason Message
--------- -------- ----- ---- ------------- -------- ------ -------
4h 27m 3 {kubelet 127.0.0.1} Warning MissingClusterDNS kubelet does not have ClusterDNS IP configured and cannot create Pod using "ClusterFirst" policy. pod: "myweb-609w4_default(01d719dd-08b1-11ec-9d6a-00163e1220cb)". Falling back to DNSDefault policy.
25m 25m 1 {kubelet 127.0.0.1} Warning MissingClusterDNS kubelet does not have ClusterDNS IP configured and cannot create Pod using "ClusterFirst" policy. pod: "mysql-2cpt9_default(1c9353ba-08d7-11ec-9d6a-00163e1220cb)". Falling back to DNSDefault policy.
查看容器日志
在需要排查容器內部應用程序生成的日志時，我們可以使用kubectl logs <pod_name>命令
這里打印etcd數據庫的日志信息,查看日志中異常的相關信息,這里用過過濾error關鍵字的方法來查看相關的信息
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl logs etcd-vms81.liruilongs.github.io -n kube-system | grep -i error | head -5
{"level":"info","ts":"2022-01-25T13:54:33.191Z","caller":"wal/repair.go:96","msg":"repaired","path":"/var/lib/etcd/member/wal/0000000000000014-0000000000185aba.wal","error":"unexpected EOF"}
{"level":"info","ts":"2022-01-25T13:54:33.192Z","caller":"etcdserver/storage.go:109","msg":"repaired WAL","error":"unexpected EOF"}
{"level":"warn","ts":"2022-01-25T13:54:33.884Z","caller":"embed/config_logging.go:169","msg":"rejected connection","remote-addr":"127.0.0.1:53950","server-name":"","error":"EOF"}
{"level":"warn","ts":"2022-01-25T13:54:33.885Z","caller":"embed/config_logging.go:169","msg":"rejected connection","remote-addr":"127.0.0.1:53948","server-name":"","error":"EOF"}
{"level":"warn","ts":"2022-01-28T03:00:37.549Z","caller":"etcdserver/util.go:166","msg":"apply request took too long","took":"628.230855ms","expected-duration":"100ms","prefix":"read-only range ","request":"key:\"/registry/runtimeclasses/\" range_end:\"/registry/runtimeclasses0\" count_only:true ","response":"","error":"context canceled"}
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
查看Kubernetes服務日志
如果在Linux系統上安裝Kubernetes,并且使用systemd系統管理Kubernetes服務,那么systemd的journal系統會接管服務程序的輸出日志。在這種環境中,可以通過使用systemd status或journalct具來查看系統服務的日志。例如:
查看服務服務啟動的相關信息，通過這個，可以定位服務加載的配置文件信息，啟動參數配置情況
┌──[root@vms81.liruilongs.github.io]-[~]
└─$systemctl status kubelet.service -l
● kubelet.service - kubelet: The Kubernetes Node Agent
Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled)
Drop-In: /usr/lib/systemd/system/kubelet.service.d
└─10-kubeadm.conf
Active: active (running) since 二 2022-01-25 21:53:35 CST; 6 days ago
Docs: https://kubernetes.io/docs/
Main PID: 1014 (kubelet)
Memory: 208.2M
CGroup: /system.slice/kubelet.service
└─1014 /usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/kubernetes/kubelet.conf --config=/var/lib/kubelet/config.yaml --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.5
2月 01 17:47:14 vms81.liruilongs.github.io kubelet[1014]: W0201 17:47:14.258523 1014 container.go:586] Failed to update stats for container "/kubepods.slice/kubepods-burstable.slice/kubepods-burstable-pode1b874bfdef201d69db10b200b8f47d5.slice/docker-c20fa960cfebd38172e123a5d87ecd499518bf22381f7aaa62d57131e7eb1aae.scope": unable to determine device info for dir: /var/lib/docker/overlay2/07d7695f2c479fbd0b654016345fcbacd0838276fb57f8291f993ed6799fae8d/diff: stat failed on /var/lib/docker/overlay2/07d7695f2c479fbd0b654016345fcbacd0838276fb57f8291f993ed6799fae8d/diff with error: no such file or directory, continuing to push stats
。。。。。。。。。。
通過 journalct來查看相關的服務日志信息，查看當前用戶下的kubelet服務日志中有error關鍵字的字段的報錯問題
┌──[root@vms81.liruilongs.github.io]-[~]
└─$journalctl -u kubelet.service | grep -i error | head -2
1月 25 21:53:55 vms81.liruilongs.github.io kubelet[1014]: I0125 21:53:55.865441 1014 docker_service.go:264] "Docker Info" dockerInfo=&{ID:HN3K:C6LG:QGV7:N2CG:VELF:CJ6T:HFR5:EEKH:HLPO:CDEU:GN3E:QAJJ Containers:32 ContainersRunning:11 ContainersPaused:0 ContainersStopped:21 Images:32 Driver:overlay2 DriverStatus:[[Backing Filesystem xfs] [Supports d_type true] [Native Overlay Diff true] [userxattr false]] SystemStatus:[] Plugins:{Volume:[local] Network:[bridge host ipvlan macvlan null overlay] Authorization:[] Log:[awslogs fluentd gcplogs gelf journald json-file local logentries splunk syslog]} MemoryLimit:true SwapLimit:true KernelMemory:true KernelMemoryTCP:true CPUCfsPeriod:true CPUCfsQuota:true CPUShares:true CPUSet:true PidsLimit:true IPv4Forwarding:true BridgeNfIptables:true BridgeNfIP6tables:true Debug:false NFd:26 OomKillDisable:true NGoroutines:39 SystemTime:2022-01-25T21:53:55.833509372+08:00 LoggingDriver:json-file CgroupDriver:systemd CgroupVersion:1 NEventsListener:0 KernelVersion:3.10.0-693.el7.x86_64 OperatingSystem:CentOS Linux 7 (Core) OSVersion:7 OSType:linux Architecture:x86_64 IndexServerAddress:https://index.docker.io/v1/ RegistryConfig:0xc000a8f960 NCPU:2 MemTotal:4126896128 GenericResources:[] DockerRootDir:/var/lib/docker HTTPProxy: HTTPSProxy: NoProxy: Name:vms81.liruilongs.github.io Labels:[] ExperimentalBuild:false ServerVersion:20.10.9 ClusterStore: ClusterAdvertise: Runtimes:map[io.containerd.runc.v2:{Path:runc Args:[] Shim:<nil>} io.containerd.runtime.v1.linux:{Path:runc Args:[] Shim:<nil>} runc:{Path:runc Args:[] Shim:<nil>}] DefaultRuntime:runc Swarm:{NodeID: NodeAddr: LocalNodeState:inactive ControlAvailable:false Error: RemoteManagers:[] Nodes:0 Managers:0 Cluster:<nil> Warnings:[]} LiveRestoreEnabled:false Isolation: InitBinary:docker-init ContainerdCommit:{ID:5b46e404f6b9f661a205e28d59c982d3634148f8 Expected:5b46e404f6b9f661a205e28d59c982d3634148f8} RuncCommit:{ID:v1.0.2-0-g52b36a2 Expected:v1.0.2-0-g52b36a2} InitCommit:{ID:de40ad0 Expected:de40ad0} SecurityOptions:[name=seccomp,profile=default] ProductLicense: DefaultAddressPools:[]
1月 25 21:53:56 vms81.liruilongs.github.io kubelet[1014]: E0125 21:53:56.293100 1014 controller.go:144] failed to ensure lease exists, will retry in 200ms, error: Get "https://192.168.26.81:6443/apis/coordination.k8s.io/v1/namespaces/kube-node-lease/leases/vms81.liruilongs.github.io?timeout=10s": dial tcp 192.168.26.81:6443: connect: connection refused
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
「如果不使用systemd系統接管Kubernetes服務的標準輸出，則也可以通過日志相關的啟動參數來指定日志的存放目錄。當然，這里的相關啟動參數的配置信息需要通過查看pod文件來查看」
查看kube-controller-manager的啟動參數和認證相關的配置文件
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl describe pod kube-controller-manager-vms81.liruilongs.github.io -n kube-system | grep -i -A 20 command
Command:
kube-controller-manager
--allocate-node-cidrs=true
--authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
--authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
--bind-address=127.0.0.1
--client-ca-file=/etc/kubernetes/pki/ca.crt
--cluster-cidr=10.244.0.0/16
--cluster-name=kubernetes
--cluster-signing-cert-file=/etc/kubernetes/pki/ca.crt
--cluster-signing-key-file=/etc/kubernetes/pki/ca.key
--controllers=*,bootstrapsigner,tokencleaner
--kubeconfig=/etc/kubernetes/controller-manager.conf
--leader-elect=true
--port=0
--requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
--root-ca-file=/etc/kubernetes/pki/ca.crt
--service-account-private-key-file=/etc/kubernetes/pki/sa.key
--service-cluster-ip-range=10.96.0.0/12
--use-service-account-credentials=true
State: Running
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl describe pod kube-controller-manager-vms81.liruilongs.github.io -n kube-system | grep kubeconfig
--authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
--authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
--kubeconfig=/etc/kubernetes/controller-manager.conf
/etc/kubernetes/controller-manager.conf from kubeconfig (ro)
kubeconfig:
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl describe pod kube-controller-manager-vms81.liruilongs.github.io -n kube-system | grep -i -A 20 Volumes
Volumes:
ca-certs:
Type: HostPath (bare host directory volume)
Path: /etc/ssl/certs
HostPathType: DirectoryOrCreate
etc-pki:
Type: HostPath (bare host directory volume)
Path: /etc/pki
HostPathType: DirectoryOrCreate
flexvolume-dir:
Type: HostPath (bare host directory volume)
Path: /usr/libexec/kubernetes/kubelet-plugins/volume/exec
HostPathType: DirectoryOrCreate
k8s-certs:
Type: HostPath (bare host directory volume)
Path: /etc/kubernetes/pki
HostPathType: DirectoryOrCreate
kubeconfig:
Type: HostPath (bare host directory volume)
Path: /etc/kubernetes/controller-manager.conf
HostPathType: FileOrCreate
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
「Pod資源對象相關的問題」,比如無法創建Pod, Pod啟動后就停止或者Pod副本無法增加,等等。此時,可以先確定Pod在哪個節點上,然后登錄這個節點,從kubelet的日志中查詢該Pod的完整日志,然后進行問題排查。
「對于與Pod擴容相關或者與RC相關的問題」,則很可能在kube-controller-manager及kube-scheduler的日志中找出問題的關鍵點。
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl logs kube-scheduler-vms81.liruilongs.github.io
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl logs kube-controller-manager-vms81.liruilongs.github.io
「kube-proxy經常被我們忽視,因為即使它意外停止」, Pod的狀態也是正常的,但會導致某些服務訪問異常。這些錯誤通常與每個節點上的kube-proxy服務有著密切的關系。遇到這些問題時,首先要排查kube-proxy服務的日志,同時排查防火墻服務,要特別留意在防火墻中是否有人為添加的可疑規則。
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl logs kube-proxy-tbwz5
常見問題
由于無法下載pause鏡像導致Pod一直處于Pending狀態
Pod創建成功，但RESTARTS數量持續增加:容器的啟動命令不能保持在前臺運行。
通過服務名無法訪問服務
在Kubernetes集群中應盡量使用服務名訪問正在運行的微服務,但有時會訪問失敗。由于服務涉及服務名的DNS域名解析、kube-proxy組件的負載分發、后端Pod列表的狀態等,所以可通過以下幾方面排查問題。
「1.查看Service的后端Endpoint是否正?！?br>
可以通過kubectl get endpoints <service name>命令查看某個服務的后端Endpoint列表,如果列表為空,則可能因為:
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 50d
liruilong-kube-prometheus-kubelet ClusterIP None <none> 10250/TCP,10255/TCP,4194/TCP 16d
metrics-server ClusterIP 10.111.104.173 <none> 443/TCP 50d
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get endpoints
NAME ENDPOINTS AGE
kube-dns 10.244.88.66:53,10.244.88.67:53,10.244.88.66:53 + 3 more... 50d
liruilong-kube-prometheus-kubelet 192.168.26.81:10250,192.168.26.82:10250,192.168.26.83:10250 + 6 more... 16d
metrics-server <none> 50d
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
Service的Label Selector與Pod的Label不匹配,沒有相關的pod可以提供能力
后端Pod一直沒有達到Ready狀態(通過kubectl get pods進一步查看Pod的狀態)
「Service的targetPort端口號與Pod的containerPort不一致等」 。即容器暴露的端口不是SVC暴露的端口，需要使用targetPort來轉發
「2·查看Service的名稱能否被正確解析為ClusterIP地址」
可以通過在客戶端容器中ping..svc進行檢查,如果能夠得到Service的ClusterlP地址,則說明DNS服務能夠正確解析Service的名稱;如果不能得到Service的ClusterlP地址,則可能是因為Kubernetes集群的DNS服務工作異常。
「3·查看kube-proxy的轉發規則是否正確」
我們可以將kube-proxy服務設置為IPVS或iptables負載分發模式。
對于IPVS負載分發模式,可以通過ipvsadm工具查看Node上的IPVS規則,查看是否正確設置Service ClusterlP的相關規則。
對于iptables負載分發模式,可以通過查看Node上的iptables規則,查看是否正確設置Service ClusterlP的相關規則。
尋求幫助
網站和社區
Kubernetes官網中監控、記錄和調試相關問題: https://kubernetes.io/docs/tasks/debug-application-cluster/
Kubernetes官方論壇: https://discuss.kubernetes.io/(這個需要科學上網)
GitHub庫關于Kubernetes問題列表:https://github.com/kubernetes/kubernetes/issues
StackOverflow網站上關于Kubernetes的問題討論：https://stackoverflow.com/questions/tagged/kubernetes
Kubernetes Slack聊天群組: https://kubernetes.slack.com/(需要谷歌賬號)
作者：山河已無恙
歡迎關注微信公眾號 ：山河已無恙
分類導航
