關于K8s中Service Account的一些筆記:Pod內部如何訪問K8s API Server

寫在前面
學習K8s,這塊官方文檔的翻譯的有點生澀，不太好明白。所以整理下
博文內容涉及
Service Account的簡述
Service Account的Demo
官方文檔:https://kubernetes.io/zh/docs/tasks/configure-pod-container/configure-service-account/
「 真正的堅持歸于平靜，靠的是溫和的發力，而不是時時刻刻的刺激?！?br>
學習環境

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get nodes
NAME                         STATUS     ROLES                  AGE    VERSION
vms81.liruilongs.github.io   Ready      control-plane,master   134d   v1.22.2
vms82.liruilongs.github.io   Ready      <none>                 134d   v1.22.2
vms83.liruilongs.github.io   NotReady   <none>                 134d   v1.22.2
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
Service Account 是什么？
學習Service Account之前，簡單介紹下K8s的安全體系，K8s中通過一系列機制來實現集群的安全控制，其中包括API Server的認證和授(鑒)權，關于認證和授(鑒)權，感興趣小伙伴可以看看之前的博文，我們這里簡單介紹下

「關于授(鑒)權，現在用的比較多的是RBAC(Role-Based Access Control,基于角色的訪問控制)的方式」

RBAC在Kubernetes的1.5版本中引入，在1.6版本時升級為Beta版本，在1.8版本時升級為GA?，F(xiàn)在作為kubeadm安裝方式的默認選項，相對于其他訪問控制方式，RBAC對集群中的資源和非資源權限均有完整的覆蓋。整個RBAC完全由(Role,ClusterRole,RoleBinding,ClusterRoleBinding)API對象完成，同其他API對象一樣，可以用kubectl或API進行操作?？梢栽谶\行時進行調整，無須重新啟動 API Server。

K8s的授權策略設置通過通過API Server的啟動參數"--authorization-mode"設置。除了RBAC外，授權策略還包括：

策略    描述
ABAC    (Attribute-Based Access Control)基于屬性的訪問控制,表示使用用戶配置的授權規則對用戶請求進行匹配和控制。
Webhook    通過調用外部REST服務對用戶進行授權。
Node    是一種專用模式,用于對kubelet發出的請求進行訪問控制。
「關于認證機制，在K8s的認證中，如果按照集群內外認證分的話，分為集群外認證和集群內認證：」

集群外認證一般三種，也可以理解為通過kubectl或者編程語言編寫的客戶端API訪問：

HTTP Token認證：通過一個Token來識別合法用戶。
HTTPS 證書認證：基于CA根證書簽名的雙向數字證書認證方式(Kubeconfig文件)
HTTP Base認證：通過用戶名+密碼的方式認證(用戶賬戶)，這個只有1.19之前的版本適用，之后的版本不在支持
集群內的認證也就是我們今天要講的：Service Account對象,也叫服務賬戶

所以說Service Account它并不是給Kubernetes集群的用戶(系統管理員、運維人員)用的,而是給運行在K8s上的Pod里的進程用的,為Pod里的進程提供認證。

比如我們要編寫一個類似kubectl一樣的K8s的管理工具，如一些面板工具(kubernetes-dashboard)，而且這個工具是運行在我們的K8s環境里的，那么這個時候，我們?nèi)绾谓o這個工具訪問集群做認證授權，就要用到Service Account，簡寫為sa,所以我們一般直接叫sa，或者服務賬戶

當我們創建任何一個Pod的時候，必須要有sa，否則會創建失敗，如果沒有顯示的指定對應的sa，即服務賬戶，Pod會默認使用當前的命令空間的default服務賬戶(每個命名空間都有一個名為 default 的sa資源。)

這里要說明的是每個sa服務賬戶都會生成一個secret，這個secret里面包含一個token憑證。所以說sa實際認證是通過token實現的認證。(token)

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get sa default
NAME      SECRETS   AGE
default   1         67d
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl run podcommon --image=nginx --image-pull-policy=IfNotPresent --labels="name=liruilong" --env="name=liruilong"
pod/podcommon created
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get pods podcommon  -o yaml | grep serviceAccount
  serviceAccount: default
  serviceAccountName: default
      - serviceAccountToken:
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
我們可以使用自動掛載給Pod的default服務賬戶 token訪問 API，但是前提是需要給default授權，對于RBAC的方式來講，需要給角色授權，然后綁定角色。

在 1.6 以上版本中，可以通過在sa上設置automountServiceAccountToken: false來實現不給服務賬號自動掛載 API token：

apiVersion: v1
kind: ServiceAccount
metadata:
  name: build-robot
automountServiceAccountToken: false
...
在 1.6 以上版本中，你也可以選擇不給特定 Pod 自動掛載 API token：

apiVersion: v1
kind: Pod
metadata:
  name: my-pod
spec:
  serviceAccountName: build-robot
  automountServiceAccountToken: false
  ...
如果 Pod 和服務賬戶都指定了automountServiceAccountToken值，則 Pod 的 spec 優先于服務帳戶。

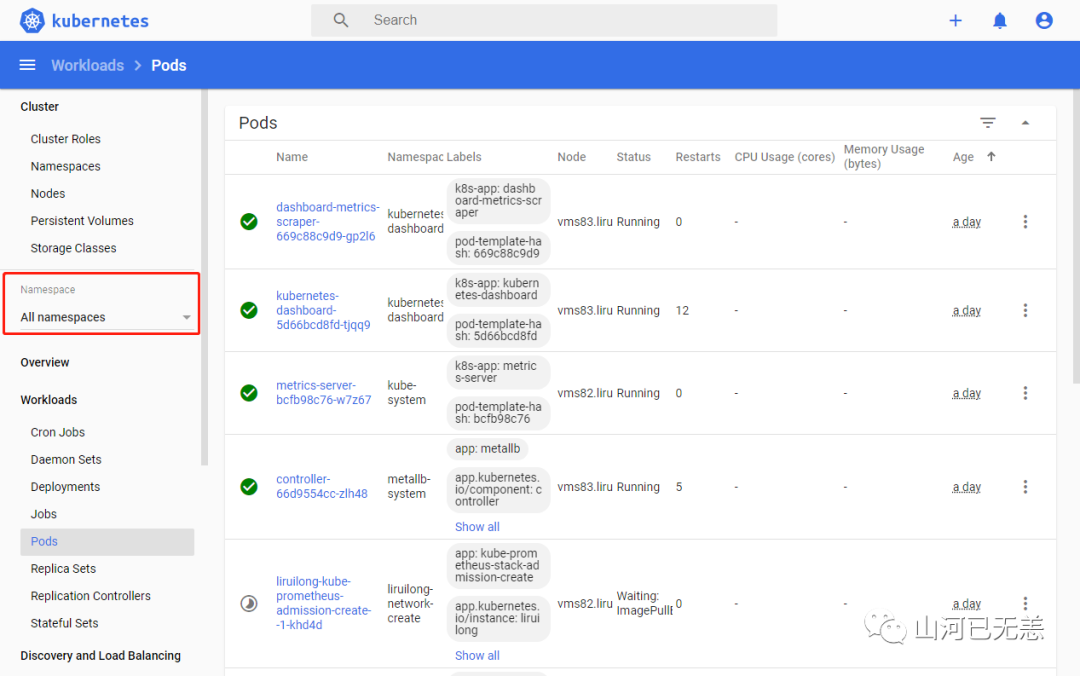

下面看一下kubernetes-dashboard對sa的應用,下面是一個已經部署好的dashboard



關于kubernetes-dashboard是K8s官網提供的Kubernetes的Web UI網頁管理工具，可提供部署應用、資源對象管理、容器日志查詢、系統監控等常用的集群管理功能。

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get pods -o wide
NAME                                         READY   STATUS    RESTARTS        AGE   IP             NODE
         NOMINATED NODE   READINESS GATES
dashboard-metrics-scraper-669c88c9d9-2qp62   1/1     Running   8 (7d11h ago)   61d   10.244.88.83   vms81.liruilongs.github.io   <none>           <none>
kubernetes-dashboard-5d66bcd8fd-l22jm        1/1     Running   13 (7d3h ago)   61d   10.244.88.80   vms81.liruilongs.github.io   <none>           <none>
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get svc  -n kubernetes-dashboard
NAME                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
dashboard-metrics-scraper   ClusterIP   10.109.92.159   <none>        8000/TCP        67d
kubernetes-dashboard        NodePort    10.106.48.37    <none>        443:32360/TCP   67d
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
上面是一個我們之前部署好的面板工具，在部署的過程中，我們要主動創建一個sa(kubernetes-dashboard)，并且為這個sa授權，而后，我們的這個面板工具才具有管理K8s集群的能力

創建sa的資源文件

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
查看kubernetes-dashboard sa，可以看到對應的token

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get sa
NAME                   SECRETS   AGE
......
kubernetes-dashboard   1         67d
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get secrets
NAME                               TYPE                                  DATA   AGE
.........
kubernetes-dashboard-token-wnqqg   kubernetes.io/service-account-token   3      67d
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl describe  secrets kubernetes-dashboard-token-wnqqg
Name:         kubernetes-dashboard-token-wnqqg
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: kubernetes-dashboard
              kubernetes.io/service-account.uid: 8e209de5-14a0-4dd5-bd19-2264170531f5

Type:  kubernetes.io/service-account-token

Data
====
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6ImF2MmJVZ3d6M21JRC1BZUwwaHlDdzZHSGNyaVJON1BkUHF6MlhPV2NfX00ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdW....
ca.crt:     1099 bytes
namespace:  20 bytes
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
然后對sa授權，一般通過RBAC的方式.創建角色

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]
然后綁定角色到sa

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

然后pod通過serviceAccount和serviceAccountName來綁定sa，當然這兩個參數指定一個就可以了。

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get  pod kubernetes-dashboard-5d66bcd8fd-l22jm -o yaml | grep -C 5  serviceAccount
  preemptionPolicy: PreemptLowerPriority
  priority: 0
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: kubernetes-dashboard
  serviceAccountName: kubernetes-dashboard
  terminationGracePeriodSeconds: 30
通過yaml文件我們可以看到，值sa為kubernetes-dashboard,當然在資源文件中，是在Deployment和Servcie中指定，

如果sa的automountServiceAccountToken或Pod的automountServiceAccountToken都未顯式設置為 false，那么會為對應的 Pod 創建一個 volume，在其中包含用來訪問 API 的令牌。

如果為sa對應的token創建了卷，則為 Pod 中的每個容器添加一個 volumeSource，掛載在其 /var/run/secrets/kubernetes.io/serviceaccount 目錄下。

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get  pod kubernetes-dashboard-5d66bcd8fd-l22jm -o yaml | grep -C 20 -i  serviceAccount
...........
    volumeMounts:
...........
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-8jlj7
      readOnly: true
.........
  serviceAccount: kubernetes-dashboard
  serviceAccountName: kubernetes-dashboard
.........
  volumes:
..........
  - name: kube-api-access-8jlj7
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
........
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
通過配置文件可以看到,token通過卷的方式掛載到了容器里的/var/run/secrets/kubernetes.io/serviceaccount 目錄，但是需要注意的是，這個token和sa對應的token在1.20版本之后進行了處理，不一樣，在之前的版本中是一樣的。

Service Account Demo
創建一個sa

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl create sa  sa-demo
serviceaccount/sa-demo created
查看對應的secret和token

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get secrets sa-demo-token-pdrs8
NAME                  TYPE                                  DATA   AGE
sa-demo-token-pdrs8   kubernetes.io/service-account-token   3      43s
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl describe secrets sa-demo-token-pdrs8
Name:         sa-demo-token-pdrs8
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: sa-demo
              kubernetes.io/service-account.uid: 7003de88-803a-4dae-a6e3-d647d0517c92

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1099 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6ImF2MmJVZ3d6M21JRC1BZUwwaHlDdzZHSGNyaVJON1BkUHF6MlhPV2NfX00ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJzYS1kZW1vLXRva2VuLXBkcnM4Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6InNhLWRlbW8iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI3MDAzZGU4OC04MDNhLTRkYWUtYTZlMy1kNjQ3ZDA1MTdjOTIiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6c2EtZGVtbyJ9.sVAmtpfqFREjUCd9bkQvMuHpasXOcKYLJvVsJLLe6ufP4zs8ZVt6HqH4ylsxbmwtibNXBV9hVNEU_2X3T2enOjOSYuiyaEP4BifDQN7DmZbu2uXQCBglixaNB7ZIIPX_oQsW0ndBNonVqMSMm-ZItYDzLo-QTOxTxc5OQZ3zSBJqITAvWFlshWA7mKntNmWw6m5KunjhYZs14Lpa-NhknYS9G6ur8SKY4XdE44hzQhD7h4y01ZezZGR3IdGd3HktA5dWYTRXXr9H00odey2YtGfj40Vql3rMrdMPJOFbAozjyaWxhmSpjHVGcbXawai8znKPCdGlW4l2aRmbghovsw
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
編寫pod資源文件，指定sa為剛才創建的sa

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl run pod-sa --image=nginx --image-pull-policy=IfNotPresent --dry-run=client  -o yaml > pod-sa.yaml
┌──[root@vms81.liruilongs.github.io]-[~]
└─$vim pod-sa.yaml
┌──[root@vms81.liruilongs.github.io]-[~]
└─$cat pod-sa.yaml
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: pod-demo
  name: pod-demo
spec:
  serviceAccount: sa-demo
  containers:
  - image: nginx
    imagePullPolicy: IfNotPresent
    name: pod-demo
    resources: {}
  dnsPolicy: ClusterFirst
  restartPolicy: Always
status: {}
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
查看創建的pod

┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl apply -f pod-sa.yaml
pod/pod-demo created
┌──[root@vms81.liruilongs.github.io]-[~]
└─$kubectl get pods pod-demo
NAME       READY   STATUS    RESTARTS   AGE
pod-demo   1/1     Running   0          95s
┌──[root@vms81.liruilongs.github.io]-[~]
└─$
對于deplay的sa修改可以直接通過set的方式設置，時間關系這里不多講啦，文末的資源文件中有demo

下面我們來看一道Service Account相關習題,這是某一期CKA認證的一道考題

創建一個名為deployment-clusterrole且僅允許創建以下資源類型的新ClusterRole：

Deployment
StatefulSet
DaemonSet
在現有的 namespace app-team 中創建一個名為cicd-token的新 ServiceAccount。

限于 namespace app-team 中，將新的ClusterRole deployment-clusterrole綁定到新的 ServiceAccount cicd-token。

題目很簡單，一般的生產我們也會涉及，指定權限創建一個集群角色，然后把這個集群角色綁定到一個新建的sa上。

# 創建集群角色
kubectl create clusterrole deployment-clusterrole --verb=create --resource=deployments,statefulsets,daemonsets
# 創建服務賬戶
kubectl -n app-team create serviceaccount cicd-token
# 綁定角色到服務賬戶
kubectl -n app-team create rolebinding cicd-token-rolebinding --clusterrole=deployment-clusterrole --serviceaccount=app-team:cicd-token
對sa學習，感覺kubernetes-dashboard的是一個很好的Demo。這里把面板的資源文件貼出來，感興趣小伙伴可以研究下

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          #image: kubernetesui/dashboard:v2.0.0-beta8
          image: registry.cn-hangzhou.aliyuncs.com/kube-iamges/dashboard:v2.0.0-beta8
          #imagePullPolicy: Always
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
      annotations:
        seccompProfile: 'runtime/default'
    spec:
      containers:
        - name: dashboard-metrics-scraper
          #image: kubernetesui/metrics-scraper:v1.0.1
          image: registry.cn-hangzhou.aliyuncs.com/kube-iamges/metrics-scraper:v1.0.1
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

作者：山河已無恙

歡迎關注微信公眾號 ：山河已無恙
