探索組件在線預覽和調試

背景
前端人員在開發過程中,如何快速感知到組件的功能和屬性?現狀是通過閱讀組件相關文檔,好在基礎組件庫的文檔相對完整和清晰,手動補全示例。業務組件相關文檔目前只能在內部 NPM 私庫上查看,靜態的 API 文檔,沒有組件的 Demo。對于非前端人員,如何預覽和調試組件呢?比如:某一天,產品想提前調研其它業務線的業務組件功能能否滿足業務訴求;業務組件開發完成,測試和設計可以介入組件相關功能的驗證;運營人員可以在低代碼搭建平臺,預覽和調試相關組件等。

基于以上痛點問題,我們從需求點出發,逐步探索實現方案。

需求
場景分析
功能
組件預覽
組件調試 面向不同的用戶群體,組件功能調試的交互分為兩種,一種是代碼調試,即通過代碼編輯器修改示例代碼,另一種是組件 schema 調試,通過 schema  JSON 數據來描述組件的屬性,然后 通過 schema 渲染器渲染成組件屬性面板,這樣非研發人員也可以方便的調試組件功能。
分類
基礎組件
業務組件

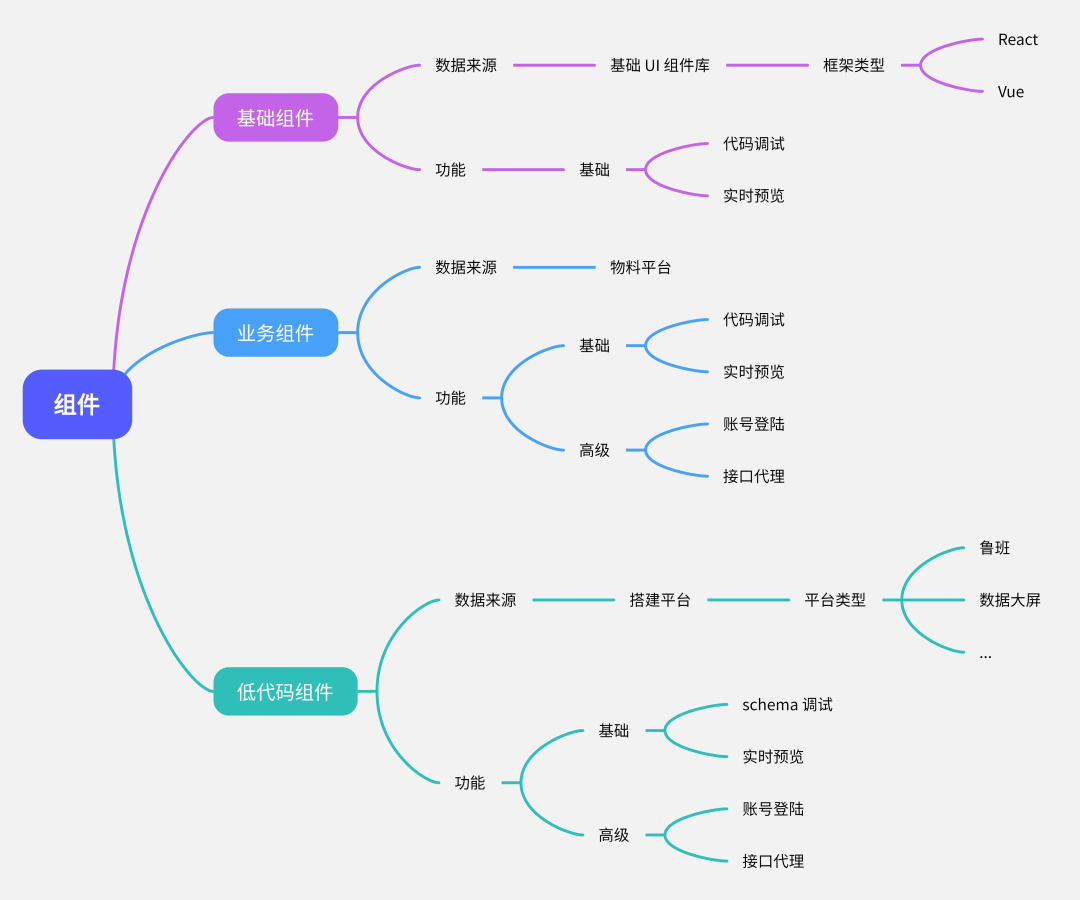

低代碼組件 大致整理了下:

這里的低代碼組件是指提供給低代碼搭建平臺使用的自定義組件,目前公司的低代碼搭建平臺主要有“魯班”,對此感興趣的小伙伴可以翻一下往期關于“魯班”的文章。

針對組件 schema 調試,低代碼組件本身自帶 schema 文件,如:“魯班”自定義組件會有一份 schema.json 文件,需要開發者去編寫和維護這份文件。

如:

{
  "props": {
    "linkList": {
      "group": "鏈接配置",
      "title": "鏈接列表",
      "type": "array",
      "fields": [
        {
          "name": "imageAddress",
          "title": "圖鏈接圖片地址",
          "type": "string"
        },
        {
          "name": "imageLink",
          "title": "鏈接跳轉地址",
          "type": "string"
        }
      ]
    }
  },
  "models": {
    "linkList": [
      {
        "imageAddress": "",
        "imageLink": ""
      },
      {
        "imageAddress": "",
        "imageLink": ""
       }
    ]
  }
}

同樣,業務組件也需要同一份 schema 協議的 JSON 文件,這樣就可以動態調試組件的屬性。但是,不會讓開發組件的同學去手動編寫。

自動生成 schema 文件大致思路:


應用
基礎組件的示例在線預覽和調試
業務組件的 Demo 在線預覽和調試
面向人群
研發
非研發:產品、測試、運營 研發主要用到組件的調試功能,而像運營和產品這樣非研發人員,他們的訴求簡單快捷,就是直接預覽該組件,并且可以通過修改組件的 props 看到實時效果,那么問題來了,如何修改組件當前的 props 屬性?玩過低代碼的同學應該很清楚,有個組件屬性面板?;谝陨?,我們可能需要代碼編輯面板、組件屬性面板以及組件功能模塊。
大致畫了下頁面的結構圖:


調研
市面上成熟的產品
Stackblitz 一款非常優秀的在線 IDE,移植了很多 VS Code 的功能和特性。目前支持了很多框架模版,如:React、Angular、Vue3、Next.js、Nuxt3 及自定義模版等,其中, StackBlitz 提供的 WebContainers 可以在瀏覽器端運行 Node.js 環境。

CodeSandbox 為 Web 應用程序而開發而構建的在線編輯器,同樣也提供了多種模版方便開發者使用。大部分核心代碼也開源了,網上也有相關的原理解析和搭建在線 IDE 方案的資料,有興趣的同學可以去看看。






小結
需求和應用場景已經很明確了,考慮到不同的用戶群體,交互方式也有差別,重點是組件調試功能的差異性,對于研發人員可通過代碼編輯器去修改代碼達到調試效果,非研發人員則通過修改屬性面板的組件屬性值。而市面上的成熟產品會提供一些設計思路,具體實現方案下面會細講。

方案
從頁面結構圖,我們先聊下代碼編輯器、組件屬性面板、工具欄、預覽區的設計方案。

代碼編輯器
目前主流的有兩種:

MonacoEditor
Codemirror MonacoEditor 相對來說功能強大,集成度高,但隨之帶來的是比較重,而 Codemirror 輕量小巧,核心文件壓縮后僅 70+ KB 左右,根據所需要支持的語言按需打包。
兩種代碼編輯器都能滿足我們的需求,在線修改一些組件 Demo 的部分代碼,其實 Codemirror 夠用了。

組件屬性面板
了解低代碼搭建平臺的朋友應該很熟悉了,其實就是通過表單去動態修改組件的屬性參數,因此,需要一份通用的 schema 協議,來描述組件的自定義屬性??梢杂婶敯嗪痛髷?shù)據搭建平臺那邊提供 schema 數據,我們負責渲染即可。

大致列了下組件屬性的類型和操作表單類型的對應關系:


工具欄
工具欄包含的主要功能有:

賬號登陸
接口代理 業務組件和低代碼組件需要被調試時,比如測試人員需要介入測試組件功能,需要用到賬號登陸和接口代理功能。組件內涉及到業務接口的請求頭需要攜帶當前登陸用戶的 token 信息,先通過請求 oauth 接口拿到對應的 token,然后塞到請求頭的 Authorization 字段上。
上面實現的前提是需要一個代理服務,在本地開發環境我們可以用 http-proxy 插件創建本地代理服務,那么問題來了,在瀏覽器端如何做代理服務?

目前主流的方案都是通過 Chrome 插件形式,需要用戶手動填寫代理接口等信息。在我們的場景下,這個方案對用戶體驗顯然不夠友好。還有個方案可以利用瀏覽器的黑科技 —— Service Worker,它可以攔截網頁發出的請求,并能自定義返回內容,相當于在瀏覽器內部實現了一個反向代理。

預覽區
核心會涉及到兩點:

容器
通信 容器是指頁面容器,業界通用做法都是通過 iframe,將編譯好的組件代碼掛載到 iframe 里一個 root 節點上,主要有環境隔離和動態生成預覽頁面的訪問鏈接作用。編輯器、核心包、預覽區之間的通信可以用 postMessage。
通信時序圖:


核心包
設計思路,主要參考了 CodeSandbox 的核心源碼,主要涉及到代碼轉譯和代碼執行。核心模塊有 Manger、Transpiler、Preset、Transpiled-module、Runtime。

架構圖:


大致流程:








Manger 模塊
顧名思義“管理者“,即管理其它核心模塊,主要負責代碼轉譯和執行的一系列過程。

核心方法有:

addTranspiledModule
resolveTranspiledModuleSync
resolveTranspiledModuleAsync
evaluateTranspiledModule首先將轉譯后的模塊緩存起來放到 transpiledModules 對象 ,需要的話可以從緩存里同步或異步加載轉譯后的模塊,如果需要執行轉譯的模塊,可以調用  evaluateTranspiledModule  方法。
transpiledModules 的類型定義:

type IModule = {
  path: string;
  url?: any;
  code: string;
  requires?: Array<string>;
  parent?: Module;
};

interface ITranspiledModules {
    [path: string]: {
      module: IModule;
      tModules: {
        [query: string]: ITranspiledModule; // ITranspiledModule 類型定義放在 Transpiled-module 模塊
      };
    };
  }
Transpiler 模塊
類比 Webpack 的 loader,對指定類型的文件進行編譯,如:Babel、Typescript、vue、tsx、jsx 等。

介紹下部分內置的 Transpiler 模塊:

babelTranspiler
stylesTranspiler
rawTranspiler
noopTranspiler
vueTranspilerrawTranspiler 跟 Webpack 的 raw-loader 作用一樣,將模塊的內容作為字符串導入,從而實現靜態資源內聯。
實現原理也很簡單:

module.exports = JSON.stringify(sourceCode)
babelTranspiler 這里實現了簡化版,script 標簽引入 bable-standalone.js,拿到全局對象 Babel。

部分核心代碼:

import babelPluginRenameImports from './plugins/babel-plugin-rename-imports';

const transpiledCode = window.Babel.transform(code, {
  plugins: [babelPluginRenameImports],
  presets: ['es2015', 'es2016', 'es2017'],
}).code;
vueTranspiler ,這里默認是 vue2.0 版本,核心依賴了 vue-template-compiler、vue-template-es2015-compiler。

將 vue 單文件組件轉換為 SFC 對象:

import * as compiler from 'vue-template-compiler';
import type {SFCDescriptor} from 'vue-template-compiler';

const sfc:SFCDescriptor = compiler.parseComponent(content, { pad: 'line' });

解析 Vue template 部分核心代碼:

import * as compiler from 'vue-template-compiler';
import transpile from 'vue-template-es2015-compiler';

function vueTemplateCompiler(html, options) {
  const bubleOptions = options.buble;
  const vueOptions = options.vueOptions || {};
  const userModules = vueOptions.compilerModules || options.compilerModules;
  const stripWith = bubleOptions.transforms.stripWith !== false;
  const { stripWithFunctional } = bubleOptions.transforms;
  const staticRenderFns = compiled.staticRenderFns.map((fn) =>
     toFunction(fn, stripWithFunctional)
 ); // 靜態渲染函數放到數組中
  const compilerOptions: compiler.CompilerOptionsWithSourceRange = {
    preserveWhitespace: options.preserveWhitespace, // 是否保留 HTML 標記之間的所有空白字符
    modules: defaultModules.concat(userModules || []), // 自定義編譯模版
    directives: vueOptions.compilerDirectives || options.compilerDirectives || {}, // 自定義指令
    comments: options.hasComment, // 是否保留注釋
    scopeId: options.hasScoped ? options.id : null, /
  };
 const compiled = compiler.compile(html, compilerOptions);

  // 生成渲染函數和靜態子樹
 let code = transpile(
    'var render = ' +
     toFunction(compiled.render, stripWithFunctional) +
    '\n' +
    'var staticRenderFns = [' +
    staticRenderFns.join(',') +
     ']') + '\n';
    // mark with stripped (this enables Vue to use correct runtime proxy detection)
    if (stripWith) {
      code += `render._withStripped = true\n`;
    }

    const exports = `{ render: render, staticRenderFns: staticRenderFns }`;
    code += `module.exports = ${exports}`;

   return code;
}

function toFunction(code, stripWithFunctional) {
  return 'function (' + (stripWithFunctional ? '_h,_vm' : '') + ') {' + code + '}';
}

Vue 在渲染階段將模板編譯為 AST,然后根據 AST 生成 render 函數,底層通過調用 render 函數會生成 VNode 創建虛擬 DOM。

Preset 模塊
組件預設構建模版,針對不同組件的框架類型,如:Vue2、React 等,預設默認該類型組件所需的 Transpiler 模塊。類似于 vue-cli、create-react-app。

核心方法:

registerTranspiler
getTranspilersregisterTranspiler 作用是注冊 Transpiler 模塊。
部分偽代碼:

vuePreset.registerTranspiler(
  (module) => /\.(m|c)?jsx?$/.test(module.path),
  [{ transpiler: babelTranspiler }]
);
vuePreset.registerTranspiler(
  (module) => /\.vue$/.test(module.path),
  [{ transpiler: vueTranspiler }]
);
Transpiled-module 模塊
即轉譯后的模塊,維護轉譯的結果、代碼執行的結果、依賴的模塊信息,負責驅動具體模塊的轉譯(調用 Transpiler)和執行。

Runtime 模塊
執行轉譯后的模塊入口,使用 eval 執行入口文件,若遇到 require 函數,加載轉譯后的依賴模塊然后使用 eval 執行執行。

核心代碼:

export default function (
  code: string,
  require: Function,
  module: { exports: any },
  env: Object = {},
  globals: Object = {},
  { asUMD = false }: { asUMD?: boolean } = {}
) {
  const { exports } = module;

  const g = typeof window === 'undefined' ? self : window;
  const global = g;
  g.global = global;

  // 兼容 Node.js 環境,列舉了一部分
  const process = {
    env: { NODE_ENV: 'development', ...env },
    cwd: () => { return '/' },
    umask: () => { return 0 }
  };

  // 全局變量
  const allGlobals: { [key: string]: any } = {
    require, // require 函數
    module,
    exports,
    process,
    global,
    ...globals,
  };

  // 是否 UMD 模塊
  if (asUMD) {
    delete allGlobals.module;
    delete allGlobals.exports;
    delete allGlobals.global;
  }

  const allGlobalKeys = Object.keys(allGlobals);
  const globalsCode = allGlobalKeys.length ? allGlobalKeys.join(', ') : '';
  const globalsValues = allGlobalKeys.map((k) => allGlobals[k]);

  const newCode = `(function $csb$eval(` + globalsCode + `) {` + code + `\\n})`;
 (0, eval)(newCode).apply(allGlobals.global, globalsValues);

}

小結
從頁面功能模塊到組件的構建核心包設計,相信各位看官已經有了初步的了解。有兩點沒有提到,在這里簡單補充下。

第一點是依賴包的數據源問題,簡單粗暴點就是創建 manifest 文件,事先預存一份底層通用的依賴包數據,如:Babel 插件相關等,如果需要?jiǎng)討B(tài)添加依賴包,可以使用 import-maps 特性。

第二點在 Transpiler 模塊沒有提到針對 react 組件的構建方案,添加相關 Babel 插件就好了,如:transform-runtime 、@babel/plugin-transform-react-jsx-source 等。

最后
背景、需求、調研、方案這四個層面,其中背景和需求更多是從產品的角度去思考和設計,這樣做出來的東西才更符合用戶需求和提升用戶體驗。我們技術人員不僅僅只關心技術層面的設計,更多時候還要從產品的角度去思考。

組件作為項目開發不可分割的一部分,從基礎組件到業務組件,我們前端開發人員每天都在跟組件打交道。圍繞著組件我們可以有很多專題,如何打造高質量組件?如何提升組件的復用率?如何提升組件的感知度?等等,貫穿組件的整個生命周期,那么如何治理好組件,需要我們共同努力和思考。

參考資料
CodeSandbox 核心源碼:https://github.com/codesandbox/codesandbox-client/tree/master/packages/sandpack-core

CodeSandbox 瀏覽器端的 webpack 是如何工作的?:https://www.yuque.com/wangxiangzhong/aob8up/nb1gp2
